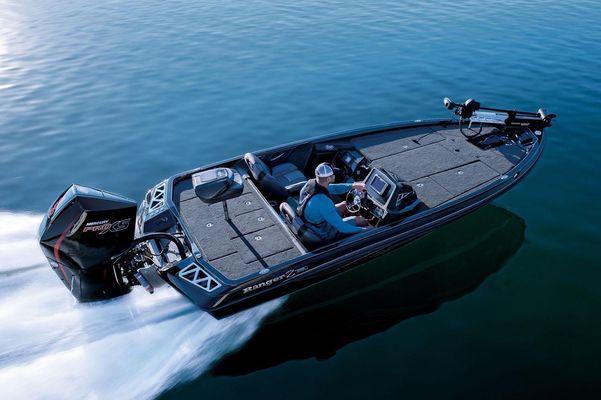

Ranger Z518L - main image

2020 Ranger Z518L

Year 2020
Length 18'10 ft

A 200-horsepower rating and full complement of tournament-ready features get you up to speed quickly in the Z518L. With a legendary pedigree and big-league performance, this nimble fishing machine is all business all day. Its 96-inch beam houses a full array of gear from 8-foot rods to a world of tackle and solid confidence. Standard features include a padded font casting deck, recessed trolling motor pedal, SRS Soft-Ride Seating®, LED compartment lights, integrated bow navigation lights, Lowrance electronics and an on-board battery charger. Rounding out this package is a custom-built Ranger Trail® trailer with matching fenders, torsion axles, Road Armor Equipped® coating and sealed LED lights. The newly reimagined Z518L is a high-performance bass boat that's within reach.

Specifications

Year Built 2020
Category Power
Length Overall 18'10 ft
Beam 8'1 ft
Number of Passengers 4
Construction Fiberglass
Engines 1
Fuel Tanks 1
Fuel Tank Cap. 39 gal
Dry Weight 1,650 lb

Engine 1 Specifications

Type: Outboard
Additional Details
  • Length:18' 10"
  • Hull Length: 18' 10"
  • Beam: 97"
  • Max. recommended HP: 200 HP
  • Engine Shaft Length: 20"
  • Inside Depth: 21"
  • Fuel capacity: 39 gal.
  • Livewell Capacity: 24 gal.
  • Total Person, Motor, Gear: 1350 lbs.
  • Approximate Boat Weight: 1650 lbs.
  • Rod Box Length - Port: 8' 0"
  • Rod Box Length - Center: 8' 0"
  • Max. person capacity: 4 persons
  • Trailer GVWR: 3725 lbs.
  • Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 24' 3"
  • Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 22' 3"
  • Width On Trailer: 102"
Standard Features

Custom Details

  • Insulated cooler w/ gelcoat liner & drain
  • Runnin' rod rack w/ strap
  • Rod storage & tackle organizer
  • Lockable storage compartments
  • Integrated tool holders
  • Stainless steel seat bases
  • Gas spring lid assists
  • Carpeted deck step w/ storage
  • Carpet trim
  • Molded-in driver/ passenger footrests
  • Custom colors, graphics & trim package
  • Trim package featuring chrome and polished aluminum accents
  • Two front deck retractable rod straps
  • Ranger® tournament measuring board
  • Stainlesss steel integrated drink holders
  • Remote drain plug
  • Power Ventilation Rod Storage™
  • Stainless steel compression lid locks

Power/Performance

  • Available w/ a wide range of precision matched outboards
  • Minn Kota® Fortrex 80 24V trolling motor
  • Cranking battery w/ holder
  • High performance stainless steel prop
  • Flush-mounted throttle control w/ power trim
  • Pultruded fiberglass transom & fiberglass stringers
  • Setback plate
  • High performance steering wheel
  • Recirculating aerated livewell w/ removable divider, filter screens, automatic timer
  • Dual livewell lids
  • Venturi Air & livewell pump-out system
  • Integrated engine setback
  • Teleflex Sea Star Pro® hydraulic steering (may vary w/ engine model & setback plate)
  • Electrical system disconnect / jumper switch
  • Recessed trolling motor foot pedal

Safety/Comfort

  • NMMA® certified
  • Upright, level flotation
  • Fire extinguisher & horn
  • Padded front deck
  • Stainless steel bow / stern eyes
  • Removable tinted windshield(s)
  • Stainless steel tie cleats
  • Passenger assist handles
  • Skid resistant material on bow
  • Bilge pump (1) automatic (1) manual
  • SRS bucket seats w/ center storage, (1) bike seat w/ pro pole, (1) SRS all-weather fold down w/ power pedestal
  • Adjustable driver seat
  • Boarding ladder

Electronics

  • Lowrance® HDS-7 LIVE @ bow & console
  • On-board Dual Pro™ charger, 15 x 3
  • Keyless ignition / digital switching @ bow & console
  • Custom multi-function gauges - speed, tach, water pressure, trim, fuel, volt, temp
  • Heavy duty 6-gauge trolling motor wiring w/ 60 amp breaker
  • Wiring harness w/ master breaker
  • 12V DC power receptacle with USB
  • Rear charger receptacle
  • LED compartment & livewell light package
  • LED navigation lights w/ built-in bow lights
  • LED courtesy light(s)
  • Solid state resettable switching w/ 30A master breaker

Trailer Features

  • Aluminum wheels w/ matching spare tire & wheel
  • Matching fiberglass fenders w/ step pads
  • Matching fiberglass trailer step
  • Hydraulic surge disc brakes
  • Ranger Trail® Cool Hub® lubrication system
  • Swing-away tongue
  • Center swing jack
  • NMMA®/NATM certified
  • Retractable trailer tie-downs
  • Ranger® Boats Road Armor Equipped® trailer protectant
  • Torsion axles
  • LED lighting
